The basic solution for almost all screwdriving tasks
- robust
- influentially precise
- ergonomic
- long-lasting
- quiet
The particular strength of theMINIMATscrewdriver is the wide torque range from0.2 Nm (2 inch pounds) to 65 Nm (575 inch pounds).This screwdriver is not only capable of driving screws, it actually tightens a connection.
The outstanding build quality of the MINIMAT screwdrivers’ ergonomicabilityto be used in a heavy industrial environment ensures extremely high uptimes.
The MINIMAT achieves its high torque accuracy through the proven DEPRAG disconnecting and closing clutch principle. The high-precision locking clutch enables a torque accuracy of ≤3% standard deviation, which is maintained formillions of assemblies. When used under the correct conditions DEPRAG pneumatic screwdrivers with locking clutch comply with a Cmk value of ≥1.67 with a tolerance of 15% in relation to 6 Sigma according to ISO 5393. A Cmk value of 1.67 means that there is a failure rate of only 0.6 per million screw assemblies.
Ergonomic housing designallows fatigue-proof operationin continuous use.

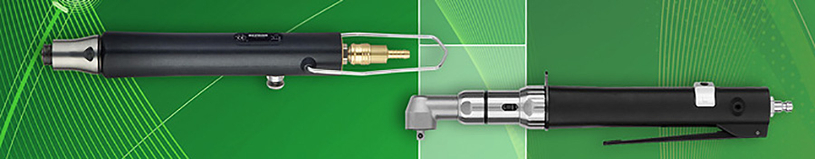

MINIMAT screwdriver
MINIMAT screwdrivers offer the highest torque accuracy and are capable of torque requirements as low as 0.2 Nm.
MINIMAT portable screwdrivers are available in different design versions:
Design execution: Straight
Torque range: 0.2 – 20 Nm
Design execution:/strong> Pistolgrip
Torque range: 0 0.3 – 20 Nm
Design execution: Angle head
Torque range: 0.3 – 65 Nm
MINIMAT-ESD Screwdriver
Our ESD screwdrivers are specially designed for operation in electrostatically exposed areas, and where an ESD-safe assembly is required (specifications according to EN 100 015).
The supplied conductive pressure hose allows a simple, direct and grounded connection without the need for an additional cable connection. Between the tool’s air hose and the main air connection, the air hose can be connected to the tool’s air supply.
- Design execution: Straight
Torque range: 0.2 – 12 Nm
Additional information:
MINIMAT hand-held screwdriver, straight design: PDF product catalog D3430
