The screwdriver with clutch-controlled function
- thread forming at maximum motor power
- pair of seats less than driving torque
- yarn formation instead of yarn damage
- ergonomic
- robust
TheSENSOMAThand-held pneumatic screwdriver with a mechanical clutch function is particularly suitable for applications, such as
- sheet metal assemblies
- wooden assemblies
- self-drilling tapping screws

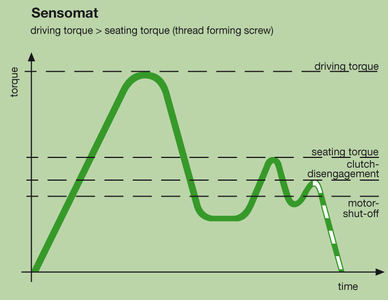

The SENSOMAT was specially designed for applications where the driving torque(thread-forming force) is close to or even higher than the seating torque,due to the high friction that occurs during assembly. It is possible to equip this screwdriver with a mechanical clutch lock, which allows safe assembly ofthread-forming, thread-cutting or self-tapping screws. This clutch lock eliminates damaging over-tightening of the screw.
The SENSOMAT screwdriver mounts the screw withfull engine power. Shortlybefore the screw is seated, the driver releases the clutch and thescrewdriver shuts off at the preset torque. Thus, the screw is completely mounted, without being stripped or otherwise damaged.
The SENSOMAT, a further development of the MINIMAT screwdriver series, incorporates ahigh-precision locking clutch that achieves a high torque accuracy of less than ≤3 % standard deviation. DEPRAG pneumatic screwdrivers with a locking clutch operated under suitable surrounding conditions achieve a Cmk value of ≥1.67 with a tolerance requirement of 15 % in relation to 6 Sigma according to ISO 5393. A Cmk value of 1.67 means that there is a failure rate of only 0.6 per million screw assemblies.

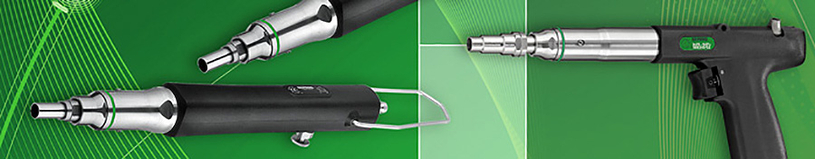

SENSOMAT Screwdriver
- Design execution: Straight
Torque range: 0.3 – 5.0 Nm with a maximum driving torque of 7 Nm
SENSOMAT Screwdriver
- Design execution: Pistolgrip
Torque range: 0.4 – 5 Nm at max. driving torque of 7 Nm
Additional information:
SENSOMAT hand-held screwdrivers: PDF product catalog D3460
