For almost all industrial applications
- simple integration
- smaller mounting dimensions
- extremely robust
- high precision locking clutch
- ATEX compliant tool variations are available.

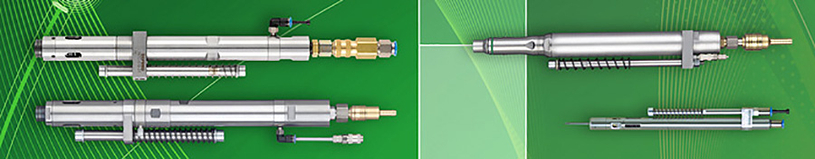

The pneumatic screwdriver spindles feature anextremely robust design and the highest torque accuracy.Using our specially designed locking clutch, it guarantees a torque accuracy of ≤3 % standard deviation, independent of the screw joint.
In many cases and under suitable conditions, even higher torque accuracy is possible and a Cmk value of ≥ 1.67 can be achieved even with a tolerance of 15 %. This kind of accuracy means that the error rate is below 0.6 errors per million assemblies. To further increase the processing reliability, it is possible to additionally control the screw depth and the screwdriver shut-off.
Already during construction, this tool series was designed for use in a heavy industrial environment. The high quality of our screwdrivers guarantees high uptime and an extremely long service life.
DEPRAG pneumatic screwdrivers require only low integration effort and have some of the smallest mounting dimensions .

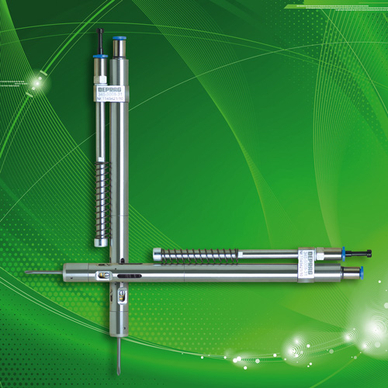

NANOMAT Screwdriver
The screwdriver forextremely small torque values from 8 Nmm – 300 Nmmat speeds from 450 to 2,000 rpm.
Forideal solutions for microassembliesin the medical industry, the watch industry, the optical industry, for the production of electronics and small consumer components, and for use with precision engineering or model making.

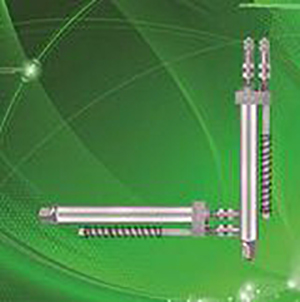

MICROMAT screwdriver
The basic solutionfor almost all screwdrivingapplications that require a very small torque value of 2 Ncm – 70 Ncm.
This slim screwdriver,barely larger than a ballpoint pen, is designed for use in a rugged industrial area and this series of controllers guarantees extremely high uptimes.

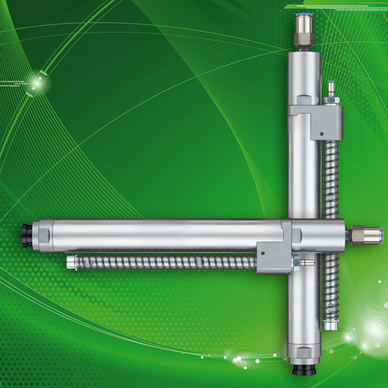

MINIMAT screwdriver
The basic solutionfor almost all screwdriving applications that require a torque range from 0.2 to 180 Nm.
This popular screwdriver spindle is designedfor use in rugged industrial applicationsand ensuresextremely high uptimes .

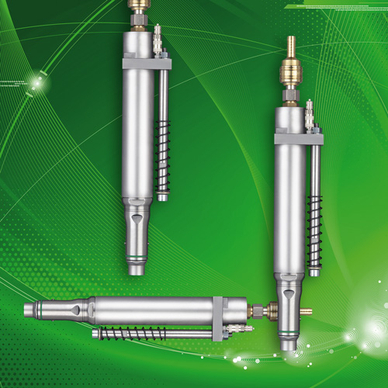

SENSOMAT Screwdriver
The screwdriver with clutch-controlled functionfor screw joints with a seating torque higher than the driving torque.
The specialized solution forthreaded, cutting or self-drilling fasteners! The SENSOMAT screwdriver first tightens the screw at full motor power and engages the locking clutch only shortly before the screw head finishes.
Excessive screw damage is impossible!
