Interfaces

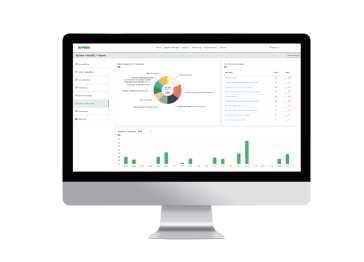

DEPRAG Cockpit

Maintain an overview of your screwdriving systems with the DEPRAG Cockpit. The software enables supervision and analysis of assembly tasks (condition monitoring) and provides analysis tools for continuous process optimization, recognition of trends and predictive maintenance. The DEPRAG Cockpit can even be used to supervise and analyse screwdriving systems from other manufacturers.

DEPRAG Cockpit

As part of the screwdriving system DEPRAG Plus you also receive in the DEPRAG Cockpit Basic your central user interface in responsive design

– for parameterisation
> administration of global settings
> creation and organisation of screwdriving programs
> activation of additional features under DEPRAG Apps
> creation of back-ups and logic functions

– for visualisation
> processing data acquisition for single user

– for documentation
> automatic processing data acquisition of end values and screwdriving curves

Organizer
Organize screwdriving programs > create program groups:
– Simple structuring of screwdriving programs according to component version or product
– Fast change of screwdriving programs for different product versions > saves assembly time
– Easy retrieval of screwdriving programs relating to a specific product

Back-up function
Convenient back-up of system settings, screwdriving parameters, screwdriving results and screwdriving curves

Optionally available
The DEPRAG Cockpit Professional models – in addition to the pre-installed Basic model, processes can be analysed and optimised. Assembly lines, workstations and assembly systems can be managed and displayed centrally and maintenance
schedules can be pre-planned.  The DEPRAG Cockpit Professional provides one single platform for all aspects of screwdriving technology.

WLAN Client

– Wireless connection between PC and screwdriving controller
– Perfect for poorly accessible sequence controllers
– External wireless parameterization of the AST12 sequence controller
– Secure connection > https

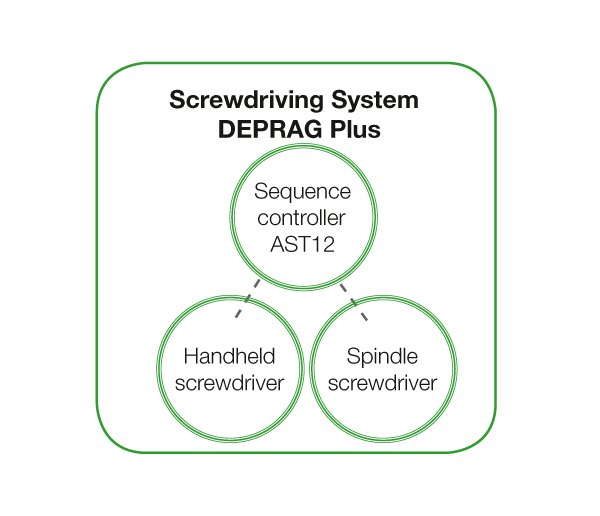

ONE platform for DEPRAG handheld and spindle screwdrivers

DEPRAG Apps

Software solutions
– DEPRAG Cockpit
– DEPRAG Graph Viewer
– DEPRAG Data eXchange
– DEPRAG Operator Guidance
– Visualisation of the process
– Safety & Change tracking
– TIA Link
– TwinCAT Link

Industry 4.0 interfaces
OPC UA, MQTT, REST, FTP

Fieldbus interfaces
EtherNet/IP, EtherCAT, Profinet, Profibus

Screwdriving procedures
– Torque controlled
– Angle controlled
– Clamp Force Control (seating point detection)
– Friction procedure (friction dependent torque assembly)

Software updates
Update service and safety package
– one-time
– annual licence

Logic functions

Logically link various assembly sequences to guarantee optimal processing reliability, such as scanning, part lock, screw position monitoring, …
