The particular strength of the MINIMAT screwdriver is the capability to achieve torque ranges 0.2 to 180 Nm. This screwdriver is not only able to drive screws, but to actually adjusts a connection.

The extraordinary construction quality of the ergonomic MINIMAT screwdrivers and the capability to be used in a heavy industrial environment, assures extreme high up-times.

The MINIMAT achieves its high torque-accuracy through the proven principle of the DEPRAG disengagement- and shut-off clutch. Using our special designed shut-off clutch, guarantees a torque accuracy of ≤3 % standard deviation, independent from the screw joint. In many cases and under suitable conditions, it is possible to achieve an even higher torque accuracy and a Cmk value of ≥1.67 even at a tolerance of 15 % can be reached. This type of accuracy means that the error rate is below 0.6 errors per one million assemblies. To increase the processing reliability even further, it is possible to additionally control the screw-depth and the shut-off of the screwdriver.

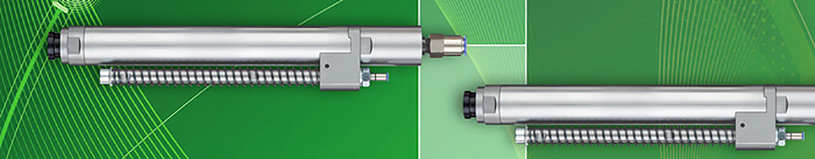

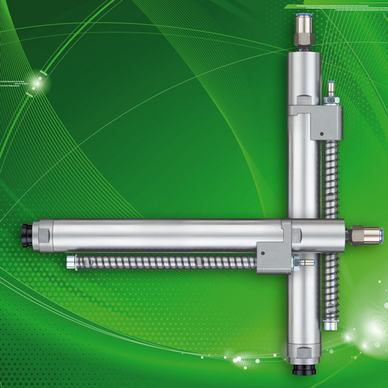

The MINIMAT screwdriver spindles are easy to integrate and they have very small mounting dimensions. Our MINIMAT stationary screwdrivers are available in different design forms.
